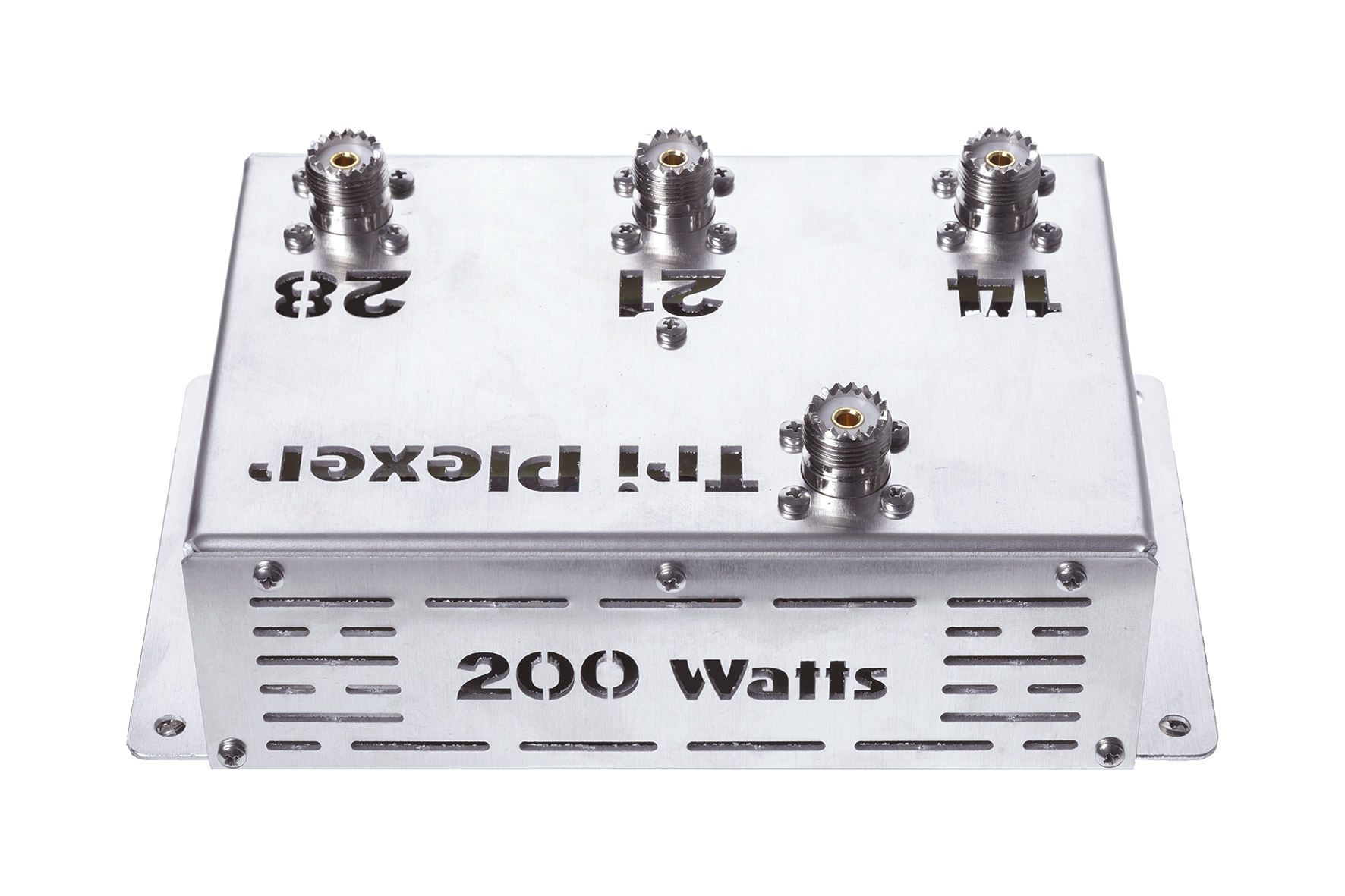

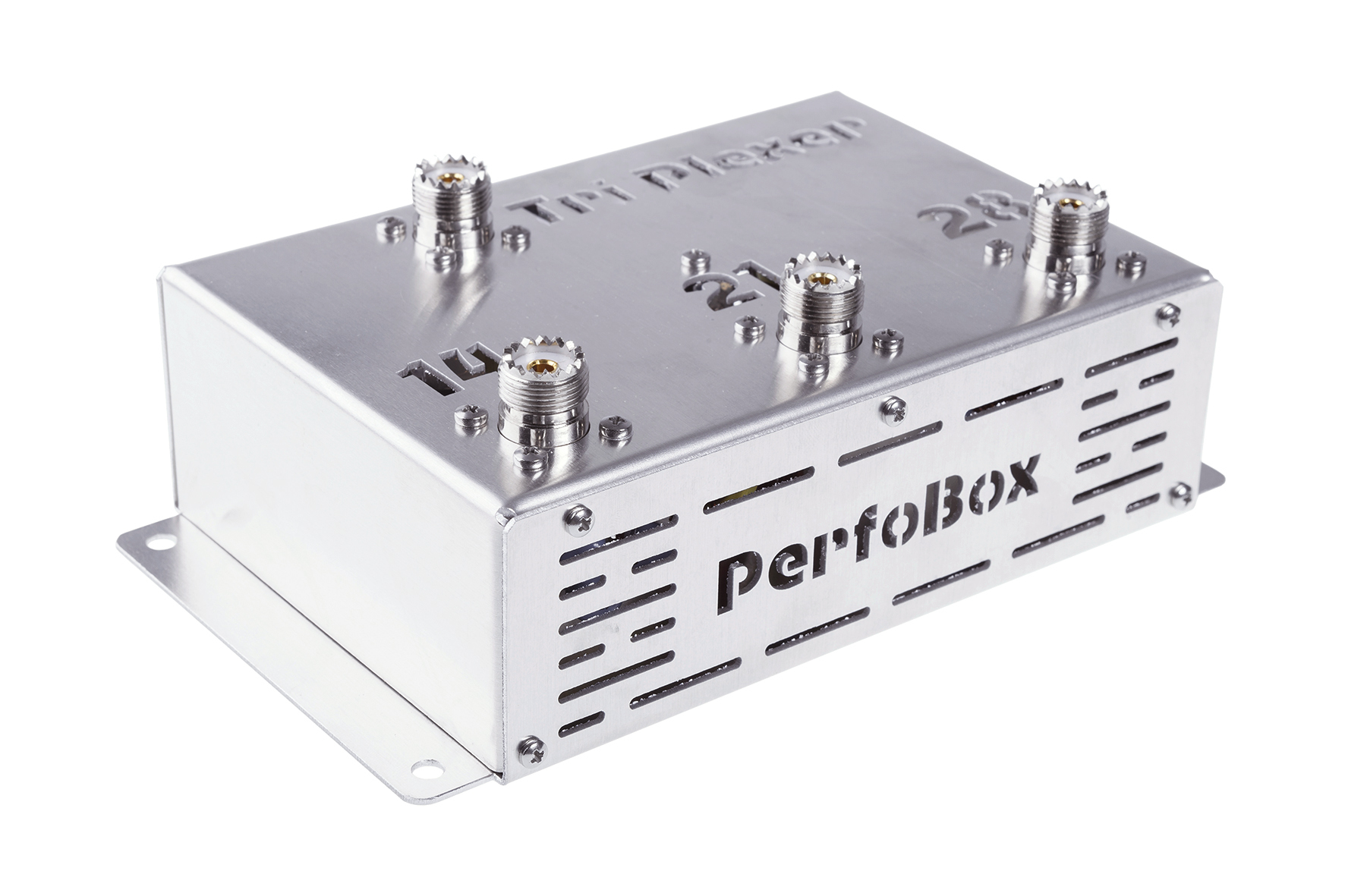

TriPlexer «Perfo Box-200», 200W ICAS, 14-21-28 MHz

SKU: PB-TP200
Availability: By Order
175 Eur
add to compare Compare
  • Overview
  • Additional Information

Download:



Detailed data sheet of TriPlexer «Perfo Box-200»



Application Note AN_MP-01  “Using High Performance Multiplexers to improve your HF station Capability”

Typical specifications:

Impedance:        50 Ohm
Maximum ICAS power per band port: 200 W
Maximum ICAS power at antenna port: 400 W
VSWR:    ≤1,2 : 1
Connector: SO-239 (UHF female)
Dimensions (L x W x H) mm/inches: 200 x 125 x 70 mm / 7,9” х 4,9” х 2,8”
Net weight, kg/lbs.: ≤0,65 kg / 1,4 lbs
Band, MHz: 14 - 21 - 28
Power, Watts, ICAS: 200
