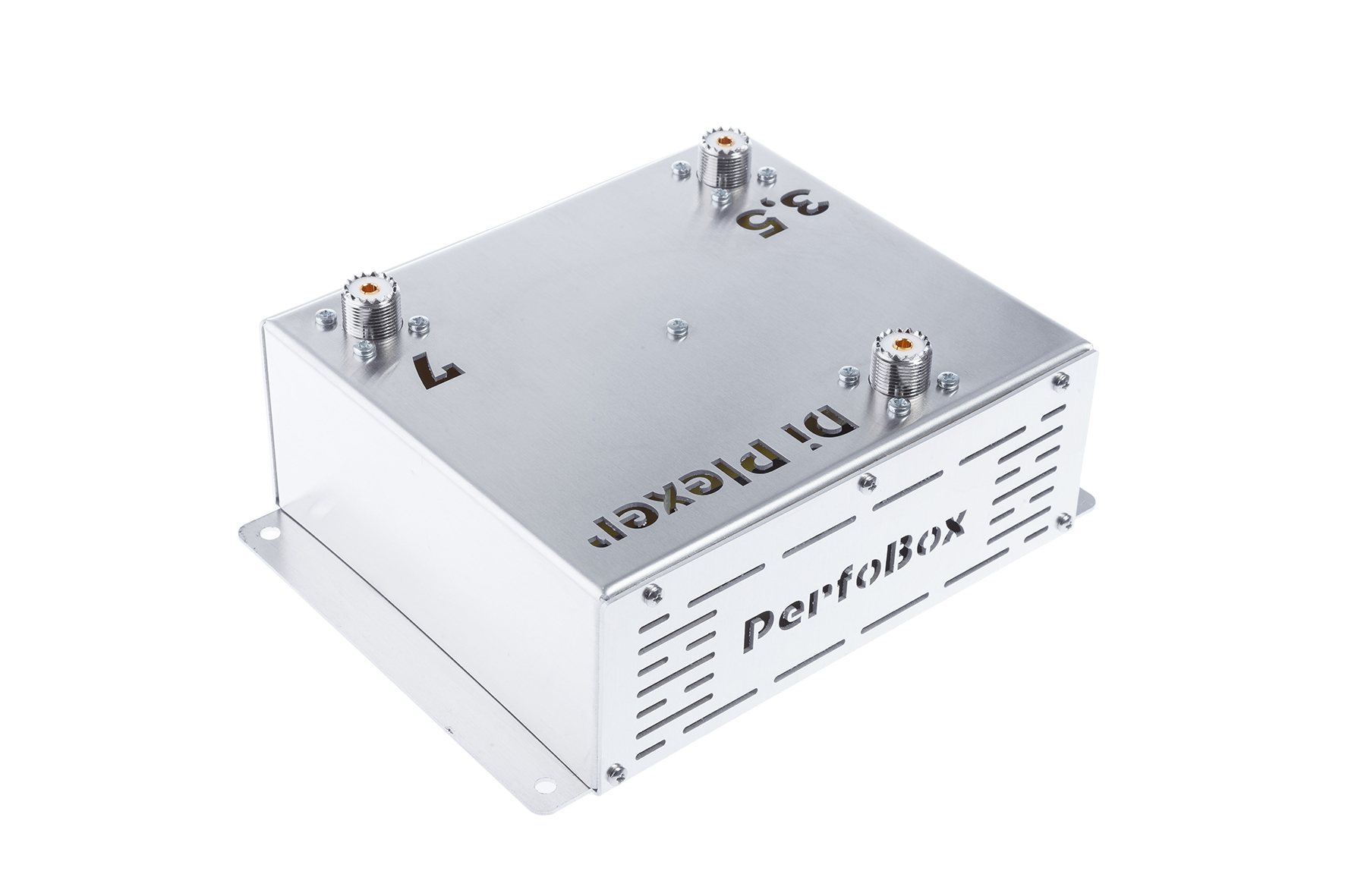

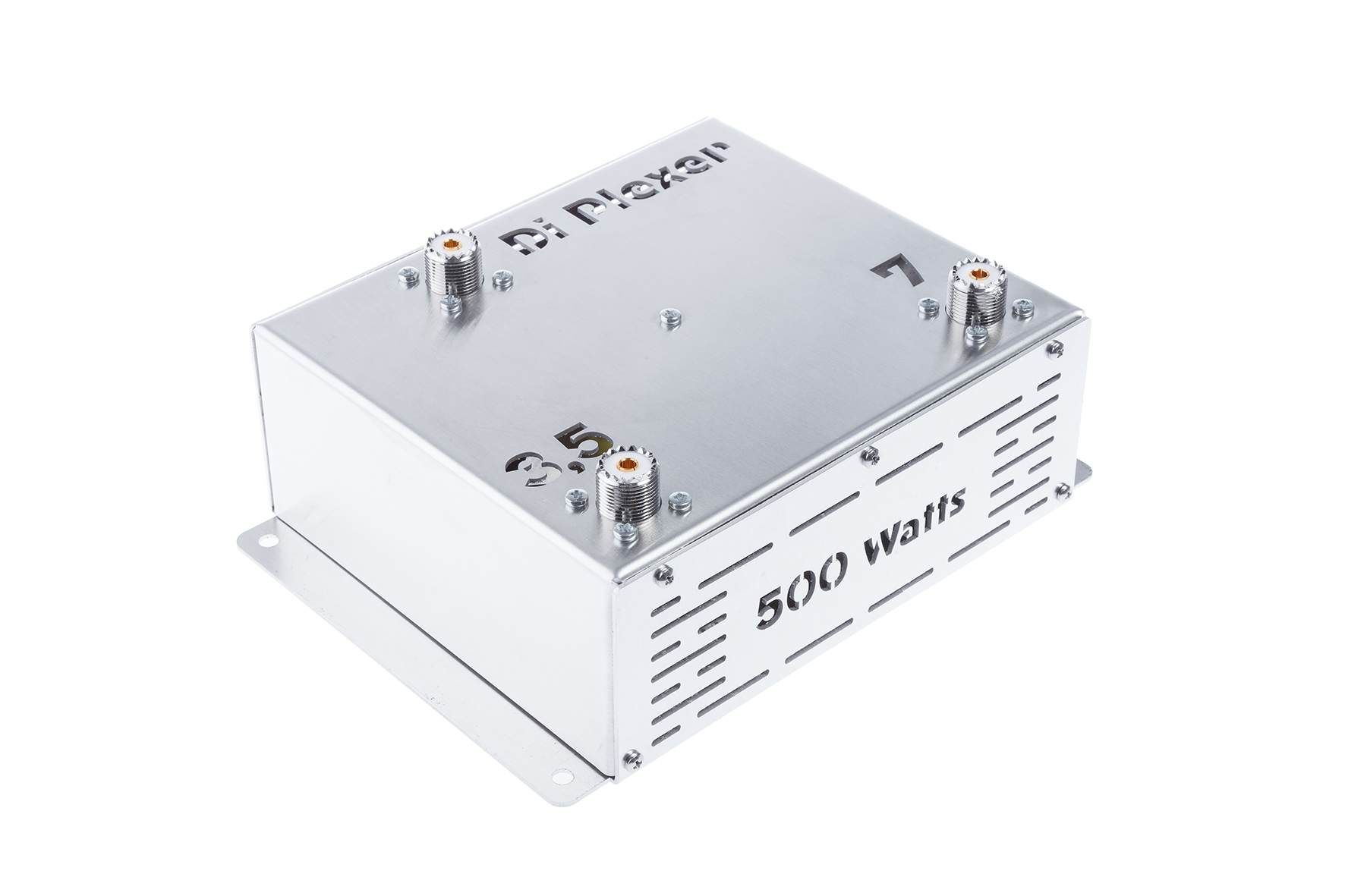

DiPlexer «Perfo Box-500», 500W ICAS, 3.5 MHz / 7 MHz

SKU: PB-DP500-3.5/7
Availability: By Order
180 Eur
add to compare Compare
  • Overview
  • Additional Information

Download:



Detailed data sheet of DiPlexer «Perfo Box-500»



Application Note AN_MP-01  “Using High Performance Multiplexers to improve your HF station Capability”

Typical specifications:

Impedance:        50 Ohm
Maximum ICAS power per band port: 500 W
Maximum ICAS power at antenna port: 1000 W
VSWR:    ≤1,2 : 1
Connector: SO-239 (UHF female)
Dimensions (L x W x H) mm/inches: 200 x 155 x 80 mm / 7,9” х 6,1” х 3,3”
Net weight, kg/lbs.: ≤0,65 kg / 1,4 lbs
Band, MHz: 3,5 / 7
Power, Watts, ICAS: 500
