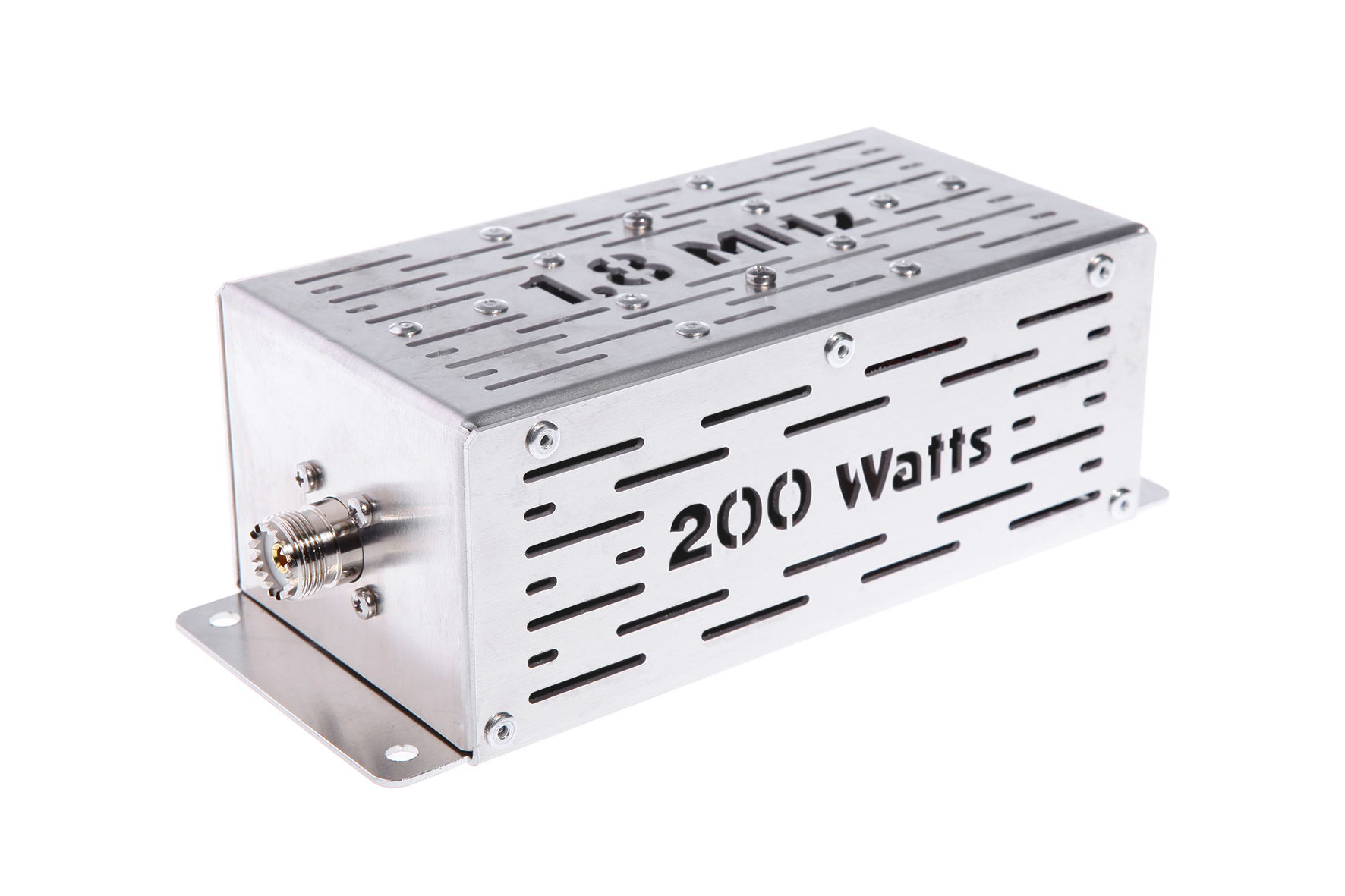

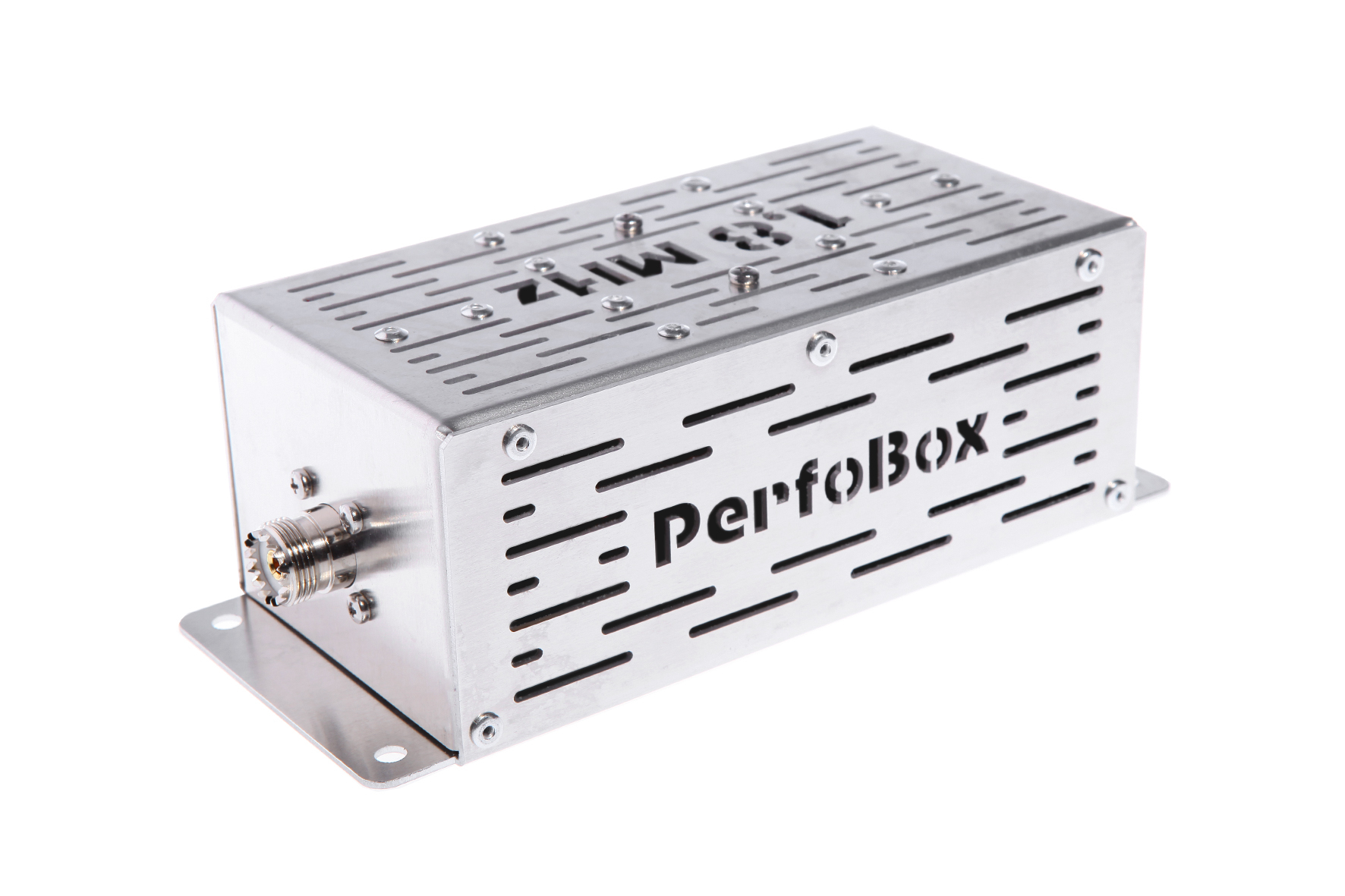

Band Pass Filter «Perfo Box-200», 200W ICAS, 1.8 MHz

SKU: PB-F200-1.8
Availability: By Order
110 Eur
add to compare Compare
  • Overview
  • Additional Information

Download:



Detailed data sheet of «Perfo Box-200» filter series

Typical specifications:

Impedance:        50 Ohm
Power rating: 200W
Insertion loss: ≤0,5dB
Return loss: ≥20dB
VSWR:    ≤1,2:1
Connector: SO-239
Dimensions (L x W x H) mm/inches: 195 x 90 x 65 mm / 7,7” х 3,6” х 2,6”
Net weight, kg/lbs.: ≤0,55 kg / 1,2 lbs





Band, MHz: 1,8
Power, Watts, ICAS: 200
